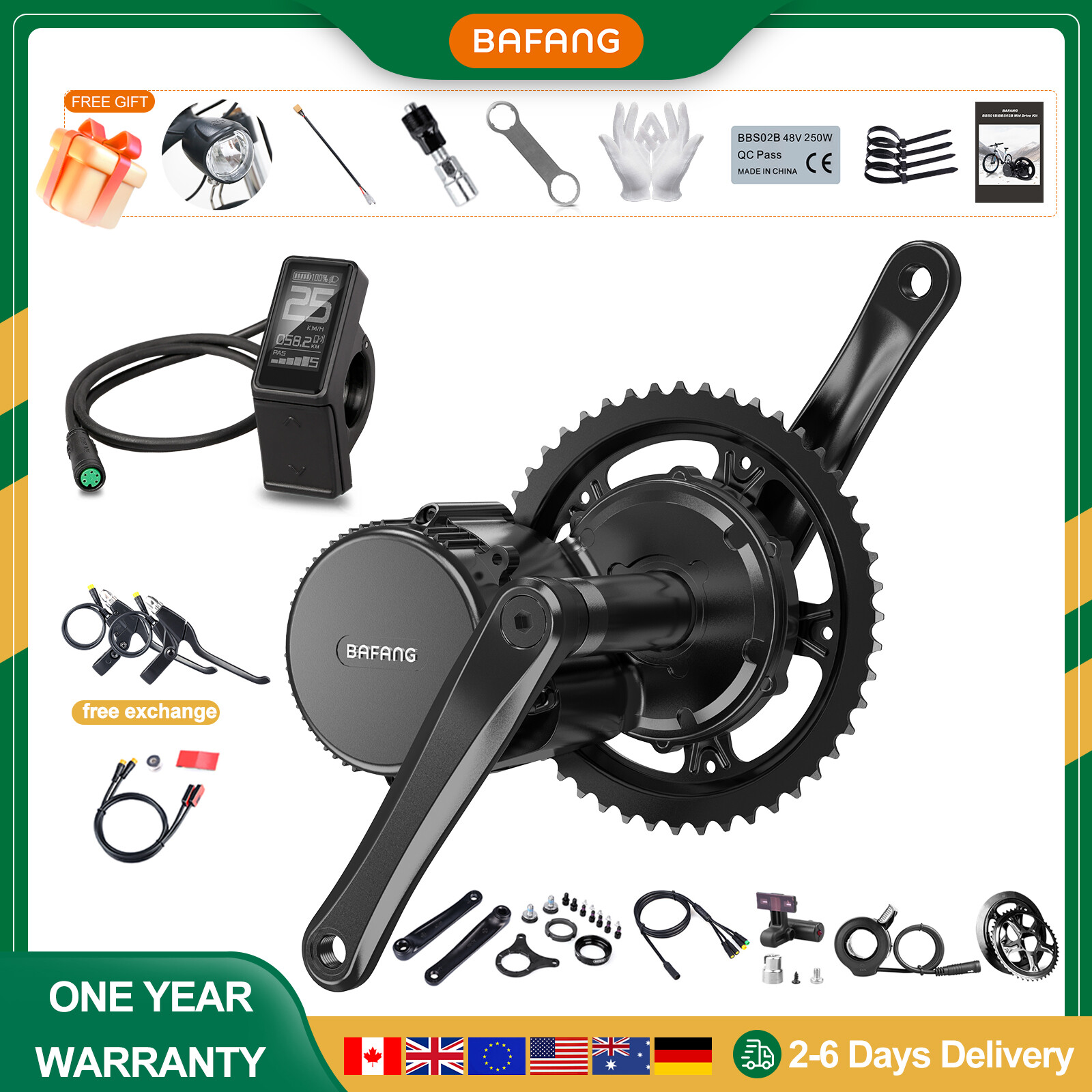

Electric Bike BAFANG 48V 750W BBS02B Mid Drive Motor Conversion Kit

Product Description
Product Description 48V 750W Bafang Mid Drive Motor Specification: Model: BBS02B Type: Brushless Gear Motor Voltage: 48V Wattage: 750W Color: Black Net Motor Weight: 4.5kg Position: Mid Crank Motor Bracket Bottom Length: 68mm or 100mm (bottom bracket width shall be 68-73mm) Waterproof Grade: IP65 Certification: CE/EN/ROHS Working Temperature: -20-80C℃ Controller: Integrated Inside the Motor Controller Current: 25A Hailong 48V 13Ah Specification: Normal Voltage: 48V Rated Capacity:13AH Battery Cell:Built in 2500mah 52PCS Array mode:13s5p Battery size:367.2*90.1*111mm Battery Weight:4.1KG Max Constant Discharge Current:25A Peak current:60A Charge voltage:54.6V Discharge cut off voltage:36.4V Way of Charge:CC/CV Cycle Life:1000 times Charge Temperature:-15-65℃ Discharge Temperature:-15-65℃ Protection Function:Over charge, Over discharge,Over current, Short circuit,Balance Hailong 48V 17.5Ah Specification: Normal Voltage: 48V Rated Capacity:17.5AH Battery Cell:Built in 35ET 3500mah.65PCS Array mode:13s5p Battery size:367.2*90.1*111mm Battery Weight:4.4KG Max Constant Discharge Current:30A Peak current:60A Charge voltage:54.6V Discharge cut off voltage:36.4V Way of Charge:CC/CV Cycle Life:1000 times Charge Temperature:-15-65℃ Discharge Temperature:-15-65℃ Protection Function:Over charge, Over discharge,Over current,Short circuit,Balance Hailong 48V20Ah Specification (the size is bigger than other capacity,pls kindly check the size before order.） Nomal Volt: 48V Rated Capacity:20AH Weight:6kg Battery cell:LG or Samsung Array mode:13S4P 52pcs WH:960 Operating Voltage:36.4V~54.6V Constant Voltage:2A unit 54.6V USB Port: Yes Operating Voltage:36.4V~54.6V Standard Charge Current: 4A Waterproof level: IP54 Protection Function:Over charge, Over discharge,Over current, Short circuit, Balance Packaging included: 1 * 48V 750W Mid Drive Motor 1 Pair *Mechnical brake lever ( pls leave us message if you want to exchange for hydraulic brake sensors) 1 Pair * Crank 1 Pair * 44T or 36T black or 52T Chainwheel (Pls leave us message if you want to get 46T/48T/52T or 36T blue) 1 Set * Thumb Throttle 1 Set * Speed Sensor 1 * Display (DM03/C961/500C/750C/B750C/850C/P850C/DPC18 option) 1 * 4 to 1 Cable 1 * Accessories 1 * User Manual 1 * XT60 battery extension cable(Free) 1*  6V headlight(Free) 2*  36V250W stickers(Free) 1*battery&USA charger (optional) Note: If you choose "no battery",there is no battery comes with the motor kits. Pls note that the DPC18(0-9) Doesn't contain the Sport and ECO mode. FAQ : ①What is the max voltage this motor can handle? The motor can be powered by an 48V  battery . ②What does the size of bottom brackets fit for this motor? 68-73mm or 100mm  bottom bracket ③ What is the Generations of this motor？ It is the newest BAFANG version BBS02B! with the connector of gear sensor and front light The motor kits do not  include the gear shift sensor, you could purchase it from this link : 373169240060 About Us Payment Shipping Returns Contact Us ***Main product:  BAFANG/Tongsheng Motor Kits& Electric Bike&Battery. ***All the items we sell are authorized. Welcome and enjoy shopping. ***EU/US/AU/CA Stock. ***Enjoy the fun of DIY Ebike. We accept the following payment way: paypal,google pay,Visa, Matercard, American express 1)Item would be shipped out within 2 business days after payment finished. 2)Shipping time about 2-5 business days to Local countries. 3)Shipping time about 5-10 business days to International countries. 1.We provide US/UK/AU/EU/CA Local service within 30days after you receive goods. 2.We provide repair services in North America/Europe. 3.If there is a shortage of parcels, the goods are not right, poor quality of the products, pls kindly contact us within 7 days you received. we will take all the responsibilities and solve all the problems for you asap. Pls kindly contact us if you have any problem with the order. Working time Monday  9:am~ Friday 18:30pm
About Us ***Main product:  BAFANG/Tongsheng Motor Kits& Electric Bike&Battery. ***All the items we sell are authorized. Welcome and enjoy shopping. ***EU/US/AU/CA Stock. ***Enjoy the fun of DIY Ebike.
Payment We accept the following payment way: paypal,google pay,Visa, Matercard, American express
Shipping 1)Item would be shipped out within 2 business days after payment finished. 2)Shipping time about 2-5 business days to Local countries. 3)Shipping time about 5-10 business days to International countries.
Returns 1.We provide US/UK/AU/EU/CA Local service within 30days after you receive goods. 2.We provide repair services in North America/Europe. 3.If there is a shortage of parcels, the goods are not right, poor quality of the products, pls kindly contact us within 7 days you received. we will take all the responsibilities and solve all the problems for you asap.
Contact Us Pls kindly contact us if you have any problem with the order. Working time Monday  9:am~ Friday 18:30pm
