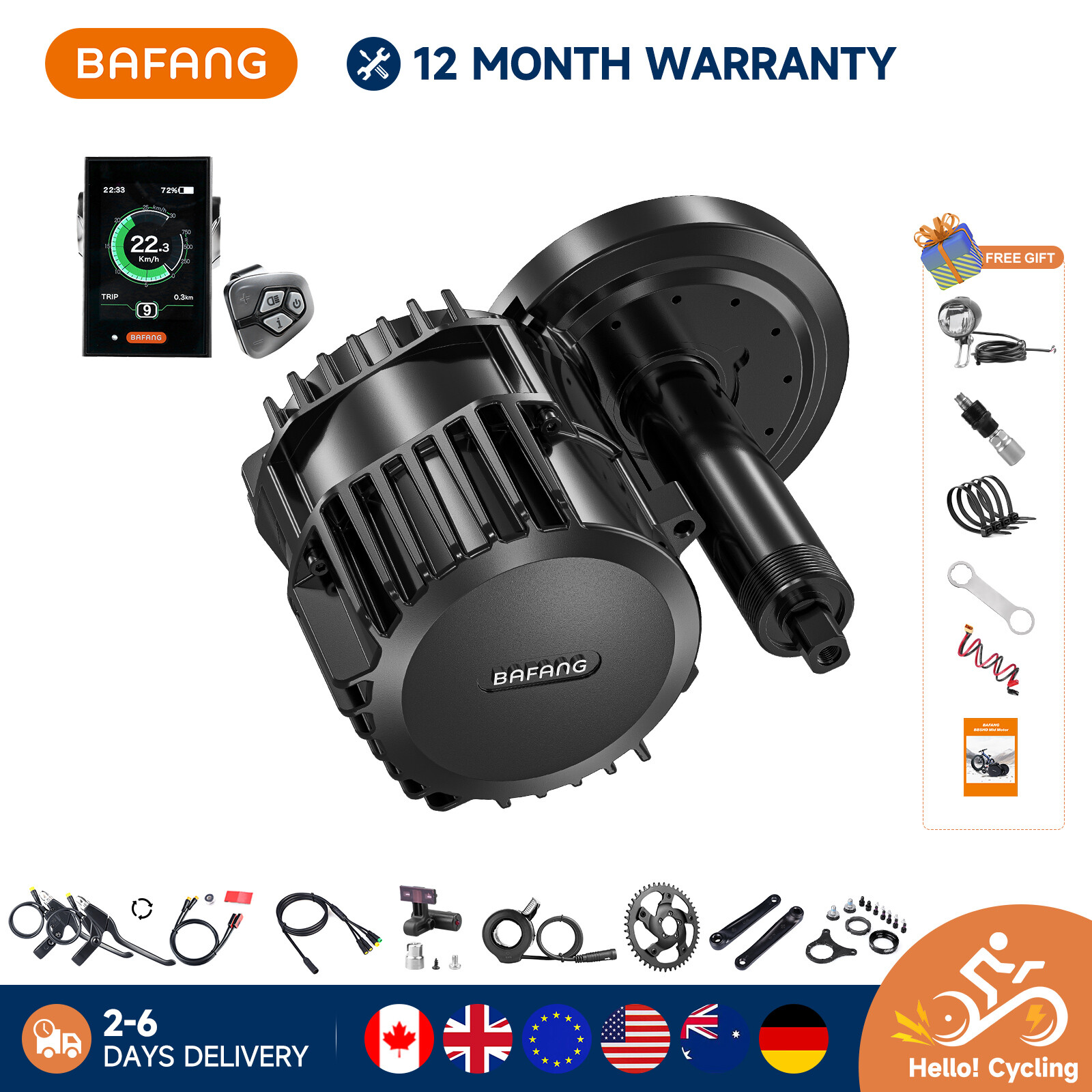

Bafang BBS03 BBSHD 48V 1000W Mid-Drive Motor E-Bike Electric Bike
Conversion KitUSD $697.04
Condition : New
Free Shipping
{{variant_type_name}} :
Notify me when the price drops
We will email you if we find a lower price on this product!
Product Description
🚵Product Description 48V 1000W BBSHD Mid drive motor Specification: Brand Name:BAFANG Voltage:48V Controller current: 30A Design:Brushless Motor Type:Brushless Gear Motor Motor type:48V 1000W mid drive conversion kit Bafang controller:designed inside the motorBafang motor Color:Black Bafang LCD display:C961/C965/500C/750C/Bluetooth 750C/850C/P850C/860C/DPC18 Chainwheel:42T/44T/46T BBSHD StyleBottom Bracket:68mm/100mm Front Lamp:YES MAX Torque:160 N.m
🚴Package List 1 Pcs* 48V 1000W Mid Drive Motor 1 Pair * Brake Lever 1 Pair * Crank 1 pair *Chainwheel( 40T/42T44T/46T optional) 1 Set * Thumb Throttle 1 Set * Speed Sensor 1 Pcs* Display (optional) 1 Pcs* 4 in 1 Cable 1 Pcs* Accessories 1*6V headlight 4*36V 250W stickers 1*Battery&charger (optional) 【If you choose"no battery" option,there is no battery comes with the motor kits】 Note: Because battery is dangerous product,we will ship it separately,so you will receive 2 parcels in the future.You may get the motor kits earlier than the battery.
🚴♂️Battery Description Hailong battery 48V 17.5Ah Specification Normal Voltage: 48V Rated Capacity:17.5AH Battery Cell:Built in Samsung 35ET 3500mah.65PCS Array mode:13s5p Battery size:367.2*90.1*111mm Battery Weight:4.4KG Max Constant Discharge Current:30A Peak current:60A Charge voltage:54.6V Discharge cut off voltage:36.4V Way of Charge:CC/CV Cycle Life:1000 times Charge Temperature:-15-65℃ Discharge Temperature:-15-65℃ Protection Function:Over charge, Over discharge,Over current, Short circuit, Balance ------------------------------------------------------------------------------------------- Rear rack battery 48V 17.5Ah Specifications: Battery Material: Li-ion Rated Voltage:36V/48V Rated capacity: 22.5Ah/17.5Ah Charging Mode: CC/AC AC input:110-240V,50/60Hz Max Charge Voltage:36V battery is 42V, 48V battery is 54.6V Cycle life: About 1000 cycles Charging time: 7.5 hours USB Port: Yes Range with one charge: 38 miles (motor 500w) Battery Size:47*16.5*9cm ------------------------------------------------------------------------------------------- Hailong 48V18Ah Specification: (pls check the size first before order) Nomal Volt: 48V Rated Capacity:18AH Battery Cell:Built in Lishen 4600mah 52PCS Array mode:13s4p Battery size:366*91*127mm Battery Weight: 6KG Max Constant Discharge Current:30A Max Charging current :5A Peak current:60A Charge voltage:54.6V Discharge cut off voltage:36.4V Way of Charge:CC/CV Cycle Life:1000 tims Charge Temperature:-15-65℃ Discharge Temperature:-15-65℃ Protection Function:Over charge, Over discharge,Over current, Short circuit, Balance ------------------------------------------------------------------------------------------- Hailong 48V20Ah Specification: (pls check the size first before order) Nomal Volt: 48V Rated Capacity:20AH Weight:4.55kg Battery cell: LG/Samsung/21700 Array mode:13S5P Operating Voltage:36.4V~54.6V Constant Voltage:2A unit 54.6V USB Port: No Min. Capacity:19Ah Operating Voltage:36.4V~54.6V Standard Chg Current: 2A Standard Dsg Current:20A(56min) Max Chg Current:3A Max Dsg Current:30A(29min) Waterproof level: IP54 Protection Function:Over charge, Over discharge,Over current, Short circuit, Balance
FAQ ❔What is the max voltage this motor can handle? ✔️The 48V model should only be powered by a 48V battery. ❔Which bike can use this motor kits? ✔️Bottom Bracket Width shall be 68-73mm or 100mm or 120mm About Us Payment Shipping Returns Contact Us 1.We has been specializing in DIY electric bike for more than 8 years.Has extensive experience in modification 2.We has a good cooperative relation with BAFANG/Tongsheng/MXUS company, All the items we sell are genuine and authorized. 3.We provide high quality products and professional services 1.We accept the following payment way: paypal,google pay,Visa, Matercard, American express 1.We will ship the item out within 24 hours after receive your payment. 2. Domestic shipping time about 2-5 days. Other international order deliver in 1-7 working days. We provide US/UK/EU/AU/CA local return and exchange service
Product quality problems - we pay return shipping costs or resend a new one
The package is a shortage - free resend or refund
Parcel lost - unconditional refund or resend
We offer business service on Chinese working time 8:30-18:00 Monday to Friday.
About Us 1.We has been specializing in DIY electric bike for more than 8 years.Has extensive experience in modification 2.We has a good cooperative relation with BAFANG/Tongsheng/MXUS company, All the items we sell are genuine and authorized. 3.We provide high quality products and professional services
Payment 1.We accept the following payment way: paypal,google pay,Visa, Matercard, American express
Shipping 1.We will ship the item out within 24 hours after receive your payment. 2. Domestic shipping time about 2-5 days. Other international order deliver in 1-7 working days.
Returns We provide US/UK/EU/AU/CA local return and exchange service
Product quality problems - we pay return shipping costs or resend a new one
The package is a shortage - free resend or refund
Parcel lost - unconditional refund or resend
Contact Us We offer business service on Chinese working time 8:30-18:00 Monday to Friday.
